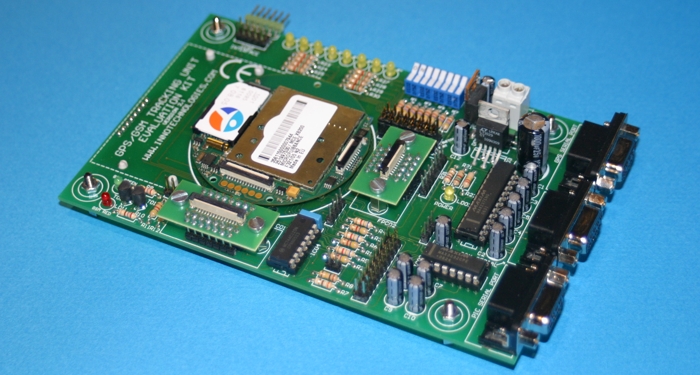

TRAXLOGIX - GPS/GSM TRACKING UNIT EVALUATION KIT - EVK-02
The EVK-02 GPS/GSM tracking unit evaluation kit allow to evaluate the possibilities of the tracking unit and quickly develop software server applications in TDX protocol without sending a single SMS over the network, a GPS serial port permit to connect the receiver to the Ublox U-center evaluation software, a GSM serial port is accessible allowing to fully emulate SMS and GPRS transmission and reception locally or to update the engine firmware if necessary, finaly the µP serial port is used to start the tracking unit in different debug modes. The kit also provide an ICSP interface compatible with two brands of PIC programmers. Additional extra features availables on OEM modules like the audio interface and the multipurpose I/O interface are accessibles on a onboard connector. (Please note that the EVK-01 is discontinued)
The EVK-02 GPS/GSM tracking unit evaluation kit include: 1 x TRX110 Tracking unit + enclosure (sim card not included)
1 x BS-118 1800mA Li-Ion rechargeable battery pack
2 x RS-232-C D-Sub 9 M/F cable
1 x FPC 20 pole flat cable
1 x FPC 30 pole flat cable
1 x PC-770 Wall outlet charger
